Lessons 20 - 21: Matplotlib Basics

This lesson is modified from Matplotlib Basics by Project Pythia.

---

Overview

We will explore using Matplotlib to create various plots. By the end of this lesson, you will be able to

• decide if Matplotlib fits your visualization needs or if you need other plotting libraries

• explain the difference between Figure and Axes

• create and customize line plots with subplots

• utilize different plot types like scatter plots, images, and contour plots (optional)

---

1. Introduction

1. Effective data visualization is needed as raw data alone is often insufficient for understanding the information it holds.



2. Python has many data visualization libraries like Matplotlib, Cartopy, Plotly, Seaborn, GeoCAT-viz, MetPy, Vapor,and Bokeh.

   • When selecting a library for your data visualization needs, consider factors like data type, visualization complexity, and interactivity needs.

   • For example, you can use:

     • Matplotlib for creating static, animated, and interactive visualizations with a wide range of plotting options,

     • Seaborn for creating complex statistical graphics with a high-level interface,

     • Plotly for creating interactive visualizations with dynamic capabilities,

     • Bokeh for creating interactive web-based visualizations with interactive tools,

     • hvPlot as a user-friendly tool for creating advanced interactive plots easily,

     • Cartopy for creating static maps with various projections and geospatial data,

     • GeoCAT for specialized geospatial data visualization, particularly for geoscience data,

     • MetPy when working with weather data,

     • Vapor for interactive 3D visualization,

     • or other libraries based on your specific data visualization needs.

   • The Comparison of Visualization Packages cookbook of Project Pythia offers information and resources to help you get started with these libraries.



3. Matplotlib is widely used for creating a varity of plots in Python

   • It is suitable for basic to intermediate level plotting needs

   • Matplotlib documentation provides example plots for different plot types

   • There are many online resources. For example:

     • Top 50 Matplotlib Visualizations provide codes based on different visualization objectives with emphasis on conveying accurate information, simplicity in design, aesthetics complementing the information, and avoiding information overload.

     • The geocat gallery contains visualization examples from many plotting categories of geosciences data.

2. Imports

Matplotlib is a Python 2-D plotting library. It is used to produce publication quality figures in a variety of hard-copy formats and interactive environments across platforms. Matplotlib includes modules such as pyplot, figure, axes, patches, colors, cm, and colorbar for creating and customizing plots and visualizations.

Importing pyplot from Matplotlib simplifies figure creation with a MATLAB-like interface. Renaming pyplot as plt is the common convention for brevity.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

3. Prepare plotting data

3.1 Air quality data

# Read the data from the CSV file into a Pandas DataFrame
# Columns: [datetime, 'PM2.5', 'PM10',  'NO2', 'SO2',  'CO', 'O3']
# Load the array from file
pre_dates = np.load('data/pre_dates.npy')
pre_values = np.load('data/pre_values.npy')
pre_aqi = np.load('data/pre_aqi.npy')
post_dates = np.load('data/post_dates.npy')
post_values = np.load('data/post_values.npy')
post_aqi = np.load('data/post_aqi.npy')

#Display loaded data
print("pre_dates:", pre_dates.dtype, pre_dates.shape)
print(pre_dates[0],pre_dates[-1])
print("pre_values:", pre_values.dtype, pre_values.shape)
print("pre_aqi:", pre_aqi.dtype, pre_aqi.shape)
print("post_dates:", post_dates.dtype, pre_dates.shape)
print(pre_dates[0],post_dates[-1])
print("post_values:", post_values.dtype, pre_values.shape)
print("post_aqi:", post_aqi.dtype, pre_aqi.shape)

pre_dates: datetime64[us] (358,)
2019-04-01T00:00:00.000000 2020-03-31T00:00:00.000000
pre_values: float64 (358, 6)
pre_aqi: float64 (358, 6)
post_dates: datetime64[us] (358,)
2019-04-01T00:00:00.000000 2021-03-31T00:00:00.000000
post_values: float64 (358, 6)
post_aqi: float64 (358, 6)

3.2 Additional information

Let us define some additonal infromation that we may need to improve visualization.

# Define date ranges
lockdown_start = pd.Timestamp('2020-04-01')
one_year_before = pd.Timestamp('2019-04-01')
one_year_after = pd.Timestamp('2021-04-01')

# Air quality parameter information
parameters = [        'PM2.5', 'PM10',  'NO2', 'SO2',  'CO', 'O3']
units = [             'µg/m³', 'µg/m³', 'ppb', 'ppb', 'ppm', 'ppm']
limits = [        35 ,      155,    100,   50,     9,  0.07]  # Unhealthy levels of senitive groups

4. Matplotlib basics

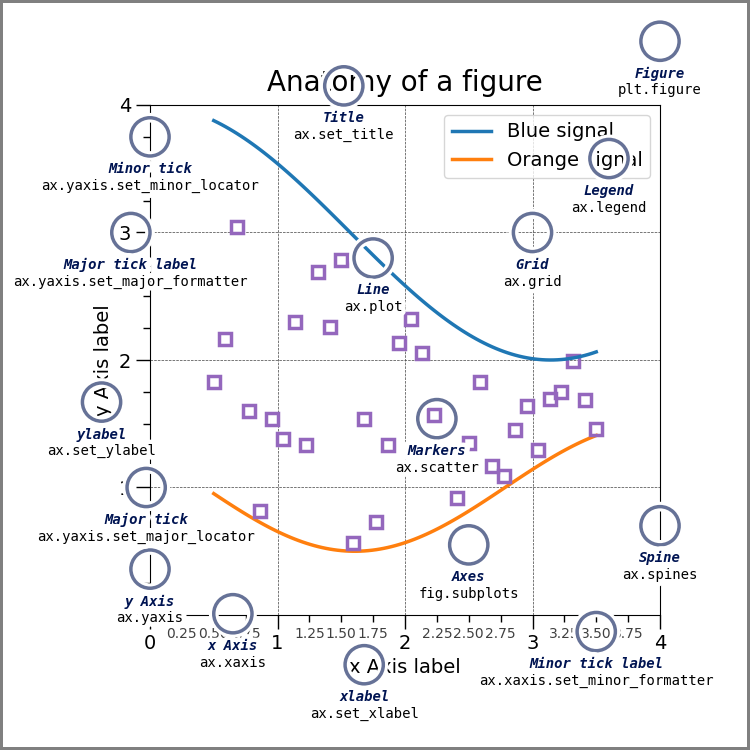

4.1 Axes and Figures

In the context of Matplotlib and plotting in general, understanding the concepts of figures and axes is fundamental. Matplotlib has two core objects:

• The Figure is the top-level container for all plot elements.

• The Axes is the area of the figure where the data is plotted.

Figure:

• A Figure in Matplotlib is the top-level container that holds all elements of your plot(s).

• A Figure can contain one or more Axes objects, which are the individual plots.

• The Figure also provides methods for saving plots to files in various formats such as PNG, SVG, etc.

• You can think of the Figure as the canvas on which all the plotting occurs.

• You can create a Figure using

  • plt.figure()

  • or plt.subplots().

Axes:

• The Axes in Matplotlib refers to a single plot within a figure and not to the plural form of multiple plots.

• An Axes object includes aspects like the x-axis, y-axis, labels, title, and the plot elements themselves.

• An Axes object contains various methods for creating plots, including plot(), scatter(), bar(), and many others.

• Within a single Figure, you can have multiple Axes arranged in a grid.

• You can create Axes objects by using:

  • plt.subplots() to create both a Figure and one or more Axes objects

  • or fig.add_subplot() on a Figure instance

Info

Matplotlib has two main interfaces. The explicit "Axes" interface uses methods on a Figure or Axes object to create visual elements step by step. Example: Creating a plot with ax.plot(). The implicit "pyplot" interface: Automatically manages Figures and Axes, adding elements to the last created plot. Example: Creating a plot with plt.plot(). In this tutorial, we will use the "Axes" interface.

4.2 Creating a plot in Matplotlib

Creating a plot typically involves the following steps:

• Initiating a Figure object, which will be the container for your plots.

• Adding Axes to the Figure. These can be added using:

  • plt.subplots() to create a new Figure and Axes simultaneously

  • or fig.add_subplot() if you have already created a Figure

• Plotting data on the Axes by calling plotting methods such as plot(), scatter(), etc.

• Enhancing the plot with titles, axis labels, legends, and other annotations to make the information clear.

• Finally, displaying the plot with plt.show() or saving it with fig.savefig().

5. Basic line plot

Plotting with:

• fig=plt.figure() creates a single figure and you can you use ax=fig.add_subplot() to add plots.

• fig,ax=plt.subplots() creates a single figure with a grid of one or multiple subplots

Both methods will allow you to create a figure with one or multiple subplots. For this tutorial, it is easier to use plt.subplots().

5.1 One subplot

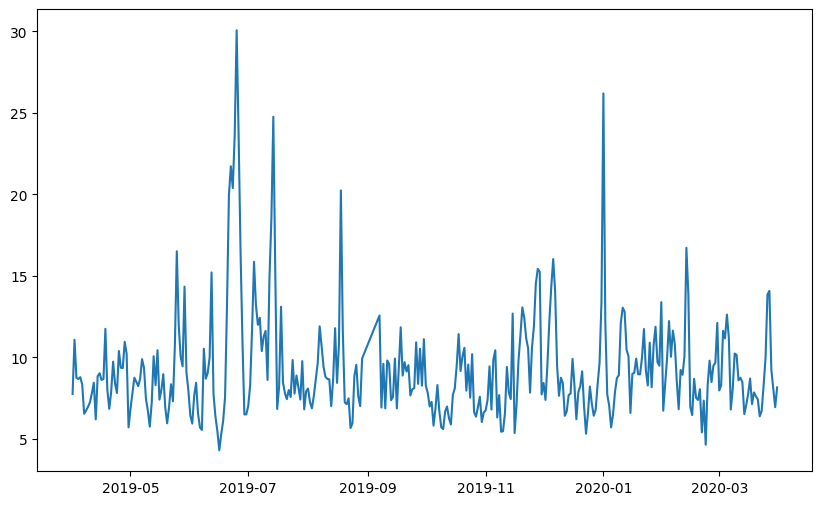

Let use see an example. To plot pre_values we need to:

1. Create a Figure with dimensions of 10 inches wide and 6 inches long using the figsize parameter.

2. create an Axes object with a single subplot on the Figure using plt.subplots()

3. use the plot method of the Axes object, with

   • datetime data pre_dates for the x-axis (i.e., the independent values)

   • and PM2.5 data pre_values[:,0] for the y-axis (i.e., the dependent values)

# Create a figure object and Axes object using subplots() method
fig, ax = plt.subplots(figsize=(10,6))

# Plot time  [day] as x-variable and PM2.5 ['µg/m³] as y-variable
ax.plot(pre_dates, #time  [day]
        pre_values[:,0]  #PM2.5 ['µg/m³]
       );

Info

By default, ax.plot will create a line plot, as seen in the above example.

5.2 Multiple subplots

Now how to plot PM10 on a different subplot?

The subplots() method takes the arguments .subplots(rows, columns). If we want to plot PM10 below PM2.5 we need a 2x1 grid:

fig, ax = plt.subplots(2, 1, figsize=(10, 6))

You can access each Axes using indexing. For example,

ax[0].plot(x,y)

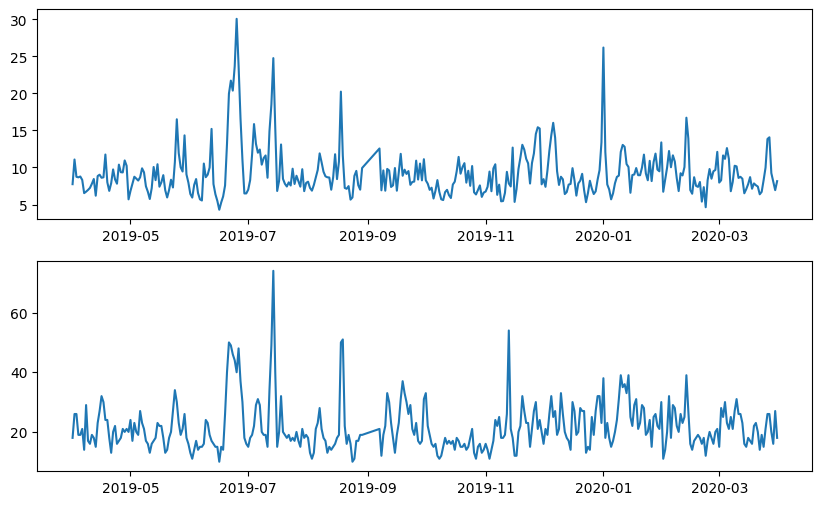

Below is a concise example using axes within a figure:

# Create a figure
fig, ax = plt.subplots(2, 1, figsize=(10, 6))

# Plot times as x-variable and air quality parameters as y-variable
ax[0].plot(pre_dates,pre_values[:,0] ); #PM 2.5
ax[1].plot(pre_dates,pre_values[:,1] );  #PM 10

5.3 Subplot function

You might have noticed that we called the subplots function with the keyword argument figsize. Here are some of the keyword arguments that you can use when you call subplots or .add_subplot() method:

Keyword	Description	Common Values / Ranges	Example	subplots	addsubplot
nrows	The number of rows of subplots	Integer >= 1	2	Yes	Yes
ncols	The number of columns of subplots	Integer >= 1	2	Yes	Yes
index	The index of the subplot	Integer starting from 1	1	No	Yes
figsize	Size of the figure in inches	Tuple (width, height) in inches	figsize=(8, 6)	Yes	No
sharex	Share the x-axis with other subplots	Boolean (True/False)	sharex=True	Yes	Yes
sharey	Share the y-axis with other subplots	Boolean (True/False)	sharey=True	Yes	Yes
xlabel	The label for the x-axis	Any text	xlabel=”X-axis”	No	Yes
ylabel	The label for the y-axis	Any text	ylabel=”Y-axis”	No	Yes
title	The title of the subplot	Any text	title=”Main Plot”	Yes	Yes
xlim	The limits for the x-axis	Tuple (min, max)	xlim=(0, 10)	No	Yes
ylim	The limits for the y-axis	Tuple (min, max)	ylim=(0, 20)	No	Yes
xticks	The positions of tick marks on the x-axis	List of values	xticks=[0, 5,10]	No	Yes

These are just a few common keyword arguments used with these two methods to customize and configure subplots in a figure.

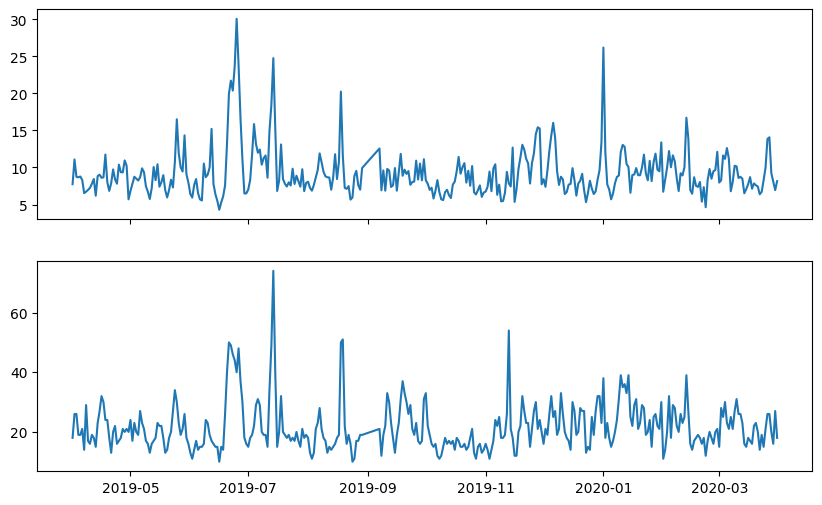

Let us try one of these keyowrds. Let us try to remove the ticks of x-axis of the upper plot, since both plots share the same axis. We can use the sharex argument.

# Create a figure
fig, ax = plt.subplots(2, 1, figsize=(10, 6), sharex=True)

# Plot times as x-variable and air quality parameters as y-variable
ax[0].plot(pre_dates,pre_values[:,0] ); #PM 2.5
ax[1].plot(pre_dates,pre_values[:,1] );  #PM 10

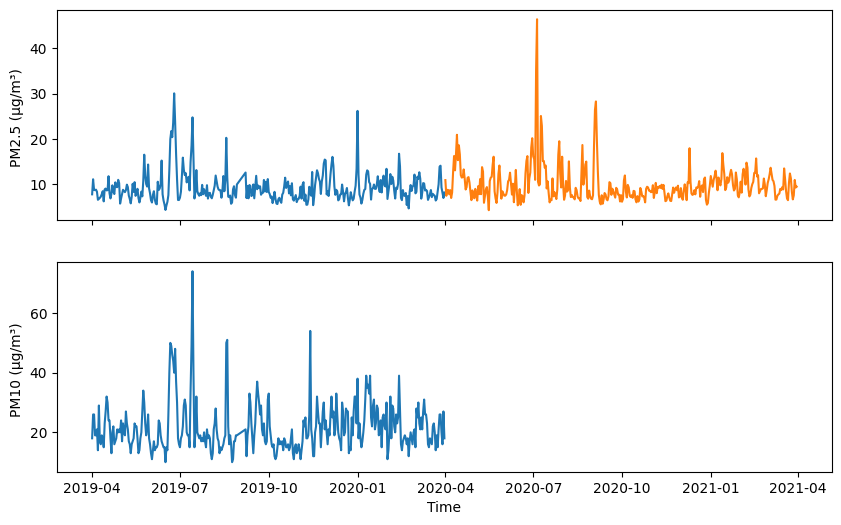

5.4 Plotting multiple graphs on the same axis

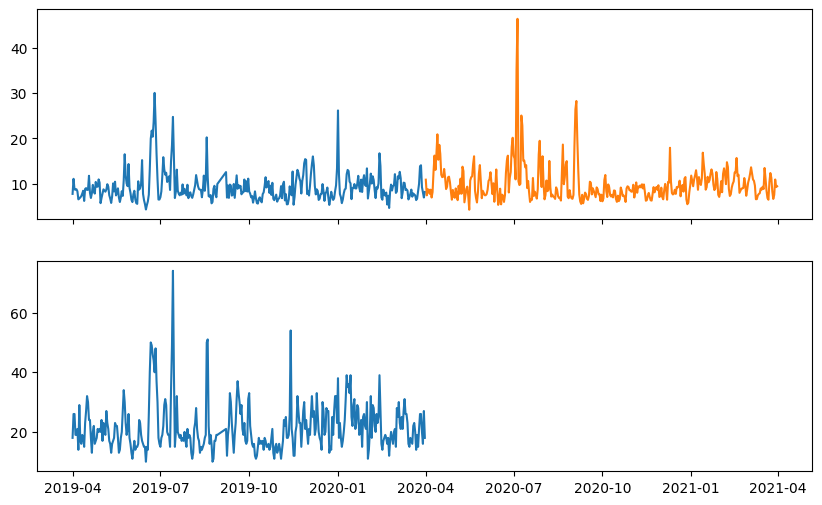

We can call .plot() more than once to add more plots to our Axes. Let rewrite the above code to plot both pre and post data only for PM2.5

# Create a figure
fig, ax = plt.subplots(2, 1, figsize=(10, 6), sharex=True)

# Plot times as x-variable and air quality parameters as y-variable for PM2.5
ax[0].plot(pre_dates,pre_values[:,0] ); #PM 2.5
ax[0].plot(post_dates,post_values[:,0] ); #PM 2.5

# Plot times as x-variable and air quality parameters as y-variable for PM10
ax[1].plot(pre_dates,pre_values[:,1] );  #PM 10

6. Customizing plot

6.1 Customizing plot with Axes object

Let us look at post-plot customization by leveraging the Axes object in Matplotlib. We can specify “Time” as x-axis label and “PM2.5” as y-axis label. This is achieved through the ax.set_xlabel() and ax.set_ylabel() methods, respectively.

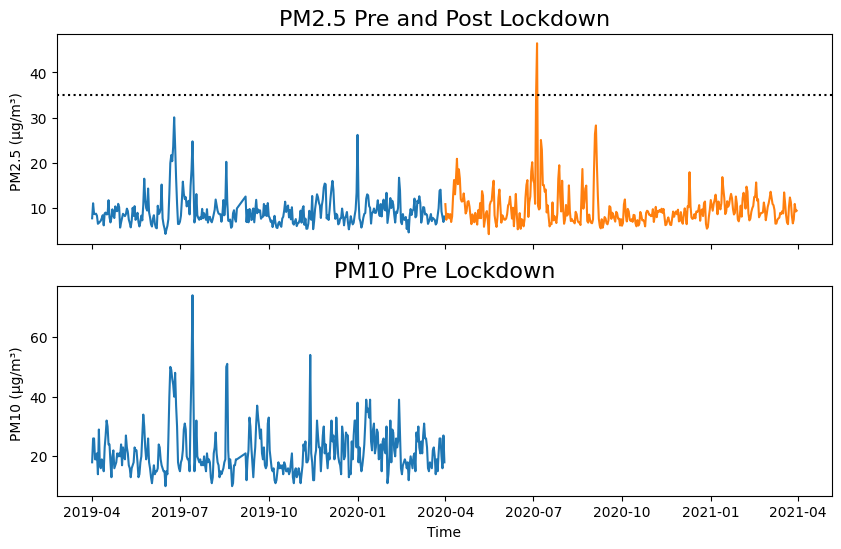

Let us add labels and visualize the updated the above figure:

# Add some labels to the y-axis
ax[0].set_ylabel(f'{parameters[0]} ({units[0]}) ')
ax[1].set_ylabel(f'{parameters[1]} ({units[1]}) ')

# Add some labels to x-axis
ax[1].set_xlabel('Time')

# Prompt the notebook to re-display the figure after we modify it
fig

Info

If you have Figure object stored in a variable named fig, you can display it using plt.show(fig), or simply by placing the variable name fig at the end of the code. This prompts the notebook to re-display the figure after modifications have been made to it rather than recreating the figure from scratch.

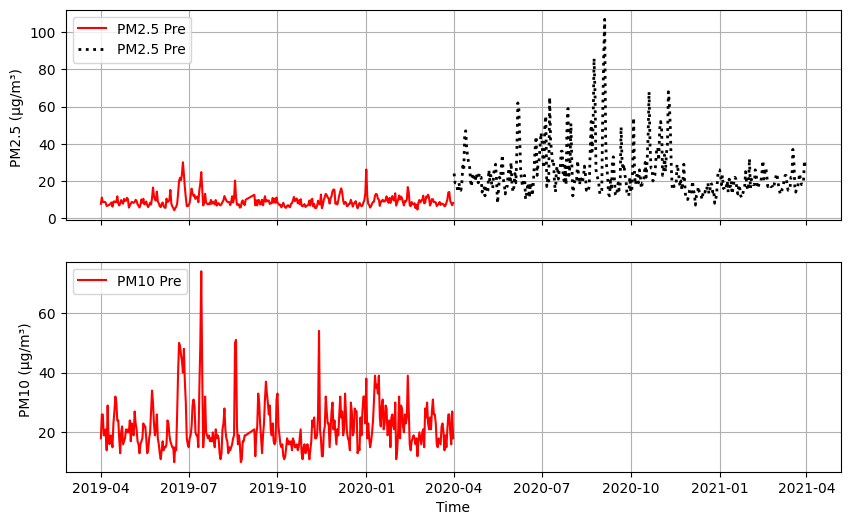

The set_xlabel and set_ylabel are methods in Axes object. Here are a few others for creating and modifying plots using Axes objects.

Labels and Title

Method	Description
ax.set_xlabel('Time')	Set the label for the x-axis to ‘Time’
ax.set_ylabel('Value')	Set the label for the y-axis to ‘Value’
ax.set_title('Sample Plot')	Set the title of the plot to ‘Sample Plot’

Legends and Grid

Method	Description
ax.legend(['A', 'B', 'C'])	Add a legend with labels ‘A’, ‘B’, ‘C’ to the plot
ax.grid(True, linestyle='--')	Add grid lines to the plot with a dashed linestyle

Axis Limits and Ticks

Method	Description
ax.set_xlim(0, 10)	Set the limits for the x-axis from 0 to 10
ax.set_ylim(0, 100)	Set the limits for the y-axis from 0 to 100
ax.set_xticks([0, 5, 10])	Set the positions of the x-axis ticks at 0, 5, 10
ax.set_yticks([0, 50, 100])	Set the positions of the y-axis ticks at 0, 50, 100
ax.set_xticklabels(['low', 'medium', 'high'])	Set the labels for the x-axis ticks as ‘low’, ‘medium’, ‘high’
ax.set_yticklabels(['start', 'mid', 'end'])	Set the labels for the y-axis ticks as ‘start’, ‘mid’, ‘end’
ax.tick_params(axis='x', rotation=45)	Rotate x-axis tick labels by 45 degrees

Annotation and Lines

Method	Description
ax.text(0, 80, 'Peak', fontsize=12)	Add the text ‘Peak’ at coordinates (0, 80) with font size 12
ax.annotate('Max', xy=(5, 90), xytext=(3, 95), arrowprops=dict(facecolor='black', shrink=0.05))	Add an annotation ‘Max’ at point (5, 90) with an arrow pointing to (3, 95)
ax.axhline(y=50, color='r', linestyle='--')	Add a horizontal dashed line at y=50 with red color
ax.axvline(x=7, color='g', linestyle=':')	Add a vertical dotted line at x=7 with green color
ax.axhspan(20, 40, alpha=0.3, color='yellow')	Add a yellow shaded area between y=20 and y=40 with transparency 0.3
ax.axvspan(2, 5, alpha=0.5, color='gray')	Add a gray shaded area between x=2 and x=5 with transparency 0.5

Plotting and Visualization

Method	Description
ax.plot(x, y, linestyle='-', marker='o', color='purple')	Plot lines connecting data points with circular markers in purple color

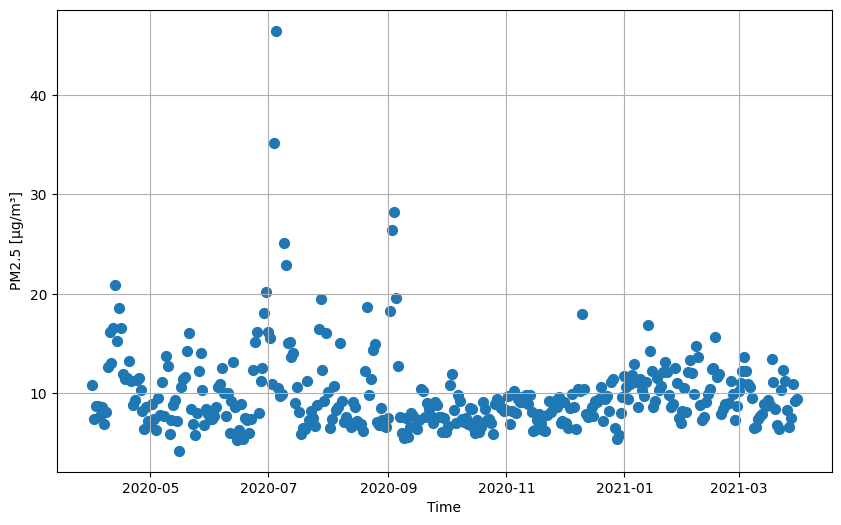

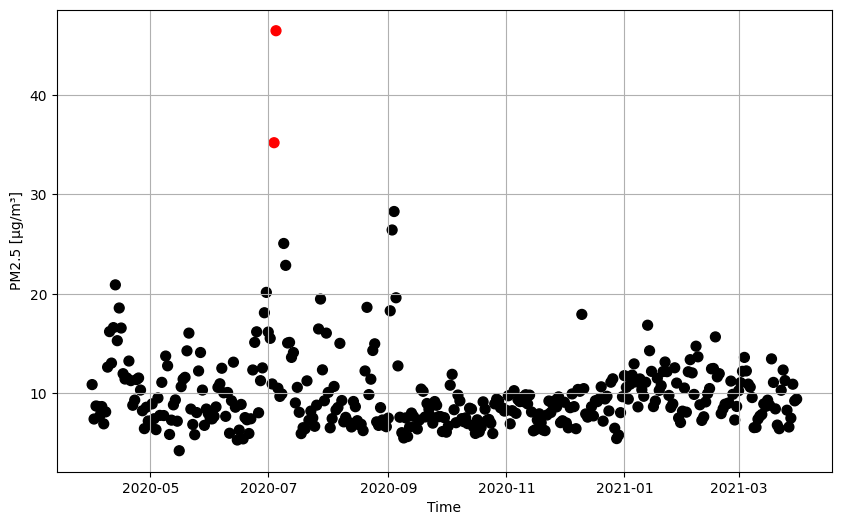

ax.scatter(x, y, s=100, c='red', marker='s')	Make a scatter plot with red squares of size 100
ax.fill_between(x, y1, y2, color='gray', alpha=0.5)	Fill area between two curves with gray color and transparency 0.5

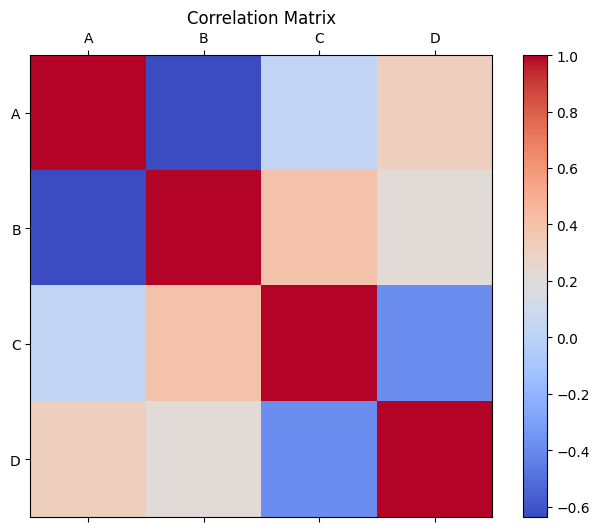

ax.imshow(image, cmap='viridis')	Display an image on the axes using the ‘viridis’ colormap
ax.hist(data, bins=20, color='orange')	Plot a histogram of data with 20 bins and orange color
ax.bar(categories, values, color='skyblue')	Plot vertical bars with sky blue color for each category
ax.barh(categories, values, color='lightgreen')	Plot horizontal bars with light green color for each category
ax.errorbar(x, y, yerr=0.1, fmt='o', color='blue')	Plot error bars with a blue color for data points with y error of 0.1

For more details on the keyword arguments each method can take, use help functions like ax[1].set_ylabel? or help(ax[1].set_label).

ax[1].set_ylabel?

Info

Note you would need to have `ax`, defined before you can access help for its methods like `set_xlabel,

Test your understanding

For both plots (PM2.5 and PM10), add a title to a plot and adjust the font size:

• Use ax.set_title() to set the plot title

• with fontsize keyword to set font size. of the title

For the first plot (PM2.5), add a black dotted horizontal line indicating the healthy limit only when the air quality parameter exceeds healthy limit.

• Use ax.axhline() to add a horizontal line

• at y equal to healty limit of that air quality healty limit

• if max(pre_post_data of PM2.5) >= healthy limit of PM 2.5

Let us try it out

#Add title and increase title font size to 16
ax[0].set_title('PM2.5 Pre and Post Lockdown', fontsize=16)
ax[1].set_title('PM10 Pre Lockdown', fontsize=16)

#Add horizontal line
max_value = np.max([pre_values[:,0].max(), post_values[:,0].max()])
if max_value >= limits[0]:
    ax[0].axhline(limits[0],color='black',linestyle='dotted')

#Display updated figure
fig

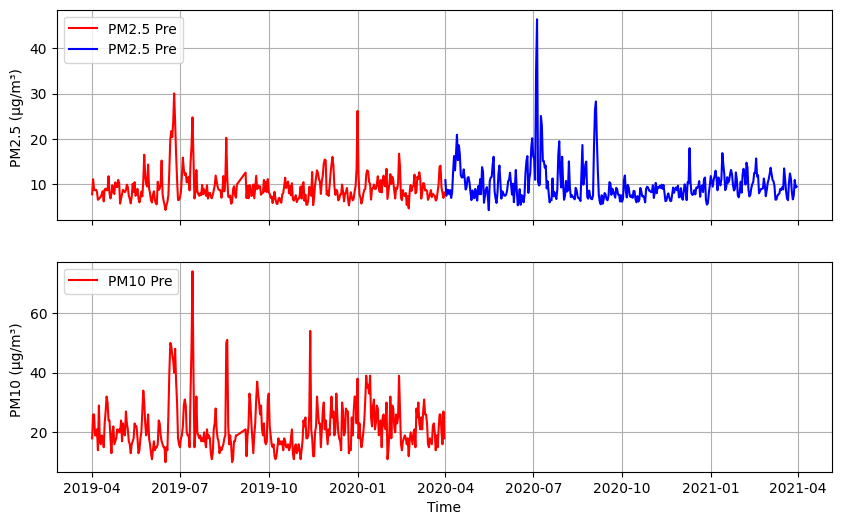

6.2 Cutomize plot when calling .plot() function

Instead of customizing the plot using ax. after its creation, you can create the plot with customization directly. Let us try to:

1. add legened for pre and post at upper left,

2. have blue line for pre and red line for post,

3. add gird to each subplot.

and do not forget to add axis labels as we did before.

To add a legend to each subplot:

• Use label keyowrd of plot in each plot call to create legend labels automatically.

• Use the legend method of Axes to display the legend labels.

• Use the loc keyword of legend method to set the legend location

To change line colors:

• Usecolor keyword of plot in each plot call to specify the desired colors for “pre” (blue) and “post” (red)

To add grid:

• Use grid method of Axes to add a grid to the Axes objects

Let us try it out:

# Create a 2x1 grid figure with sharex=True
fig, ax = plt.subplots(2, 1, figsize=(10, 6), sharex=True)

# Plot time versus PM 2.5 with label and color blue for pre and red for post
ax[0].plot(pre_dates,     #time
           pre_values[:,0],     #PM2.5
           label='PM2.5 Pre', #Legend label
           color='red'        #Line color
          ); #pre
ax[0].plot(post_dates,     #time
           post_values[:,0],     #PM2.5
           label='PM2.5 Pre', #Legend label
           color='blue'        #Line color
          ); #post

# Plot time versus PM 10 with label and color blue for pre and red for post
ax[1].plot(pre_dates,     #time
           pre_values[:,1],     #PM10
           label='PM10 Pre', #Legend label
           color='red'        #Line color
          ); #pre

# Add a legend to the upper left corner of the plot
ax[0].legend(loc='upper left');
ax[1].legend(loc='upper left');

# Add gridlines
ax[0].grid(True)
ax[1].grid(True)

# Add some labels to the y-axis
ax[0].set_ylabel(f'{parameters[0]} ({units[0]}) ')
ax[1].set_ylabel(f'{parameters[1]} ({units[1]}) ')

# Add some labels to x-axis
ax[1].set_xlabel('Time');

Here are some keyword arguments of the .plot function in Matplotlib:

Keyword	Description	Common Values / Ranges	Example
x	The x-coordinates of the data points	Any numerical values	[1, 2, 3, 4, 5]
y	The y-coordinates of the data points	Any numerical values	[10, 20, 15, 30, 25]
label	The label for the data series	Any text	label= “Data Points”
color	The color of the line	Any color name or code	color=”blue”
linestyle	The style of the line (solid, dashed, etc)	“solid” or “-“(solid line), “dashed” or “–”, “dotted” or “:”, “dashdot” or “-.”	linestyle=”dashed”
linewidth	The width of the line	Any numerical values	linewidth=2
marker	The marker style for data points	“o” (circle), “.” (point), “^” (triangle), “s” (square), “d” (diamond), “*” (star),”+” (plus sign)	marker=”o”
markersize	The size of the markers	Any numerical values	markersize= 8
markerfacecolor	The face color of the markers	Any color name or code	markerfacecolor=”red”
markeredgewidth	The width of the marker edges	Any numerical values	markeredgewidth= 1
alpha	The transparency of the line	Range: 0 (completely transparent) to 1 (completely opaque)	alpha= 0.5
zorder	The z-order of the line (layering order)	Any numerical values	zorder=2
visible	Whether the line is visible or not	True or False	visible=True
cmap	The colormap for coloring the line	Any colormap name	cmap=”viridis”
clip_on	Whether to clip the line to the axes or not	True or False	clip_on=False
solid_capstyle	The cap style for solid linestyle	“butt”, “round”, “projecting”	solid_capstyle=”butt”
solid_joinstyle	The join style for solid linestyle	“miter”, “round”, “bevel”	solid_joinstyle=”miter”

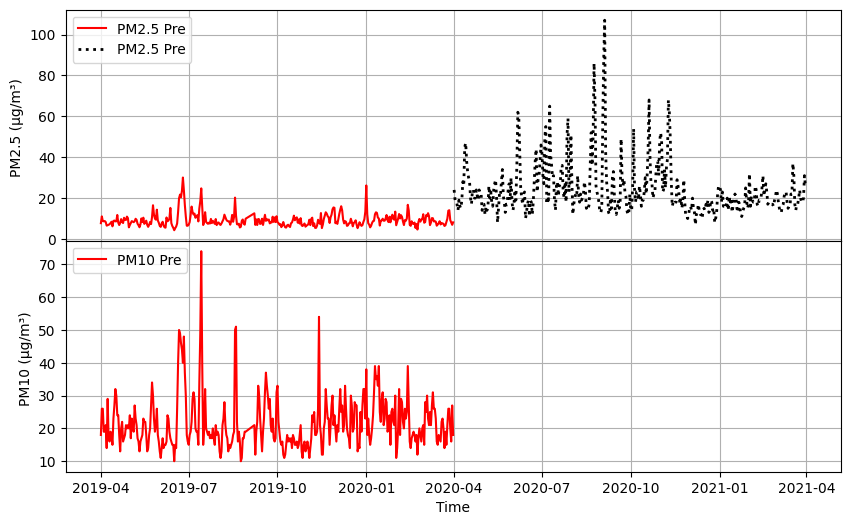

Test your understanding

For the code below add .plot() keywords to cutomize your post PM2.5 plot

• line color black

• with dotted lines

• linewidth 2

# Create a 2x1 grid figure with sharex=True
fig, ax = plt.subplots(2, 1, figsize=(10, 6), sharex=True)

# Plot time versus PM 2.5 with label and color blue for pre and red for post
ax[0].plot(pre_dates,     #time
           pre_values[:,0],     #PM2.5
           label='PM2.5 Pre', #Legend label
           color='red'        #Line color
          ); #pre
ax[0].plot(post_dates,     #time
           post_values[:,1],     #PM2.5
           label='PM2.5 Pre', #Legend label
           color='black',        #Line color
           linestyle="dotted",   #Line style
            linewidth=2        #Change linewidth
          ); #post

# Plot time versus PM 10 with label and color blue for pre and red for post
ax[1].plot(pre_dates,     #time
           pre_values[:,1],     #PM10
           label='PM10 Pre', #Legend label
           color='red'        #Line color
          ); #pre

# Add a legend to the upper left corner of the plot
ax[0].legend(loc='upper left');
ax[1].legend(loc='upper left');

# Add gridlines
ax[0].grid(True)
ax[1].grid(True)

# Add some labels to the y-axis
ax[0].set_ylabel(f'{parameters[0]} ({units[0]}) ')
ax[1].set_ylabel(f'{parameters[1]} ({units[1]}) ')

# Add some labels to x-axis
ax[1].set_xlabel('Time');

6.3 Customizing plot with Figure object

In the above plot, we can improve the visual appeal by reducing spacing between the two subplot. This is adjustment involves the Figure object rather than the Axes objects. By increasing the vertical space between subplots using fig.subplots_adjust(hspace=), we can improve the layout.

Let us try this:

# Reduce the vertical space between subplots to 0.05 inches or 0 inches
fig.subplots_adjust(hspace=0)

#Display updated figure
fig

There other methods associated with Figure objects as follows.

Adjusting Layout

Method	Description
fig.subplots_adjust(left=0.1, right=0.9, bottom=0.1, top=0.9)	Adjust the spacing between subplots by setting the margins for left, right, bottom, and top
fig.tight_layout(pad=1.0)	Automatically adjust subplot parameters with additional padding specified
fig.set_constrained_layout_pads(w_pad=2.0, h_pad=2.0, hspace=0.2, wspace=0.2)	Set padding between subplots and adjust horizontal and vertical spacing

Saving and Displaying

Method	Description
fig.savefig('plot.png', dpi=300)	Save the figure to a file with a specific resolution
fig.canvas.draw_idle()	Redraw the figure canvas, updating it if changes have been made
fig.show(warn=True)	Display the figure with a warning if there are potential issues

These examples demonstrate further functionalities for adjusting layout and saving/displaying figures.

6.4 Customizing colors

When customizing colors in your visualizations, the color attribute offers various options for color representation:

• Named Colors: You can use named colors such as red and blue for convenience.

• HTML Color Codes: Specify colors using hexadecimal color codes (#RRGGBB), like #FFA500 for red and #008000 for blue.

• RGB Color Codes: Utilize RGB color codes in the range of 0 to 255, such as (255, 0, 0) for red and (0, 0, 255) for blue.

• RGBA Color Codes: Include an alpha channel for transparency with RGBA color codes, for example, (255, 0, 0, 0.5).

Color maps (colormaps) map scalar data values to colors in visualizations, aiding in visualizing data gradients and patterns. Matplotlib provides various built-in color maps tailored for different data types. Understanding color maps can enhance plot interpretability and aesthetic appeal.

For more detailed information, you can refer to the list of named colors in Matplotlib or learn about specifying colors in Matplotlib.

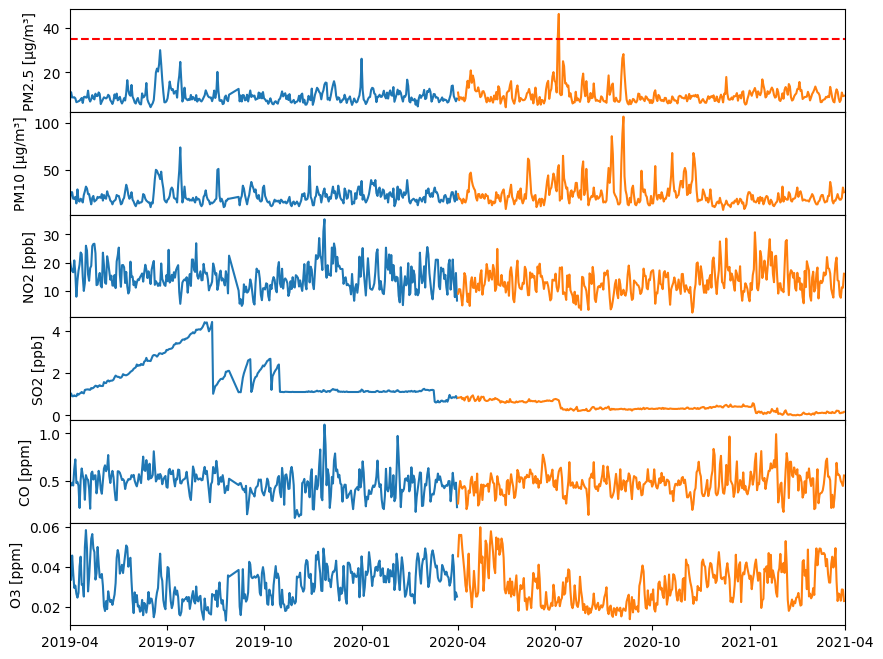

7. Class Exercise: Putting this all together

Complete the code below by:

1. plotting pre and post data for the six parameter with legend (Hint: use for loop)

2. removing horizontal spacing between subplots using fig.subplots_adjust() with hspace keyword

3. setting x-axis limits from ‘2019-01-01’ to ‘2021-01-01’ using ax.set_xlim() with the aid of pd.to_datetime('2019-04-01') to convert string to datetime

Let us try it out:

#Create Figure and Axes objects (6x1)
# with figure size 10 inche long by 8 wide inches and shared x-axis
fig, ax = plt.subplots(6, 1, figsize=(10, 8), sharex=True)

#Change horizontal spaces between subplot
fig.subplots_adjust(hspace=0)

for index, (parameter, unit, limit) in enumerate(zip(parameters, units, limits)):

    # Plot times as x-variable and air qualiy parameter as y-variable
    ax[index].plot(pre_dates, pre_values[:, index])   #pre
    ax[index].plot(post_dates, post_values[:, index]) #post

    # Add a horizontal line for healthy limit
    if (limit<= pre_values[:, index].max()) or (limit <= post_values[:, index].max()):
        print(f"{parameter} exceeds healthy limit {limit}")
        ax[index].axhline(y=limit, color='r', linestyle='--', label='Healthy Limit')

    # Set the x-axis limits using the datetime objects
    # Note we need to convert date strings to datetime objects because our NumPy area has datetime
    ax[index].set_xlim(pd.to_datetime('2019-04-01') , pd.to_datetime('2021-04-01'))

    # Set y-label
    ax[index].set_ylabel(f"{parameter} [{unit}]");

PM2.5 exceeds healthy limit 35

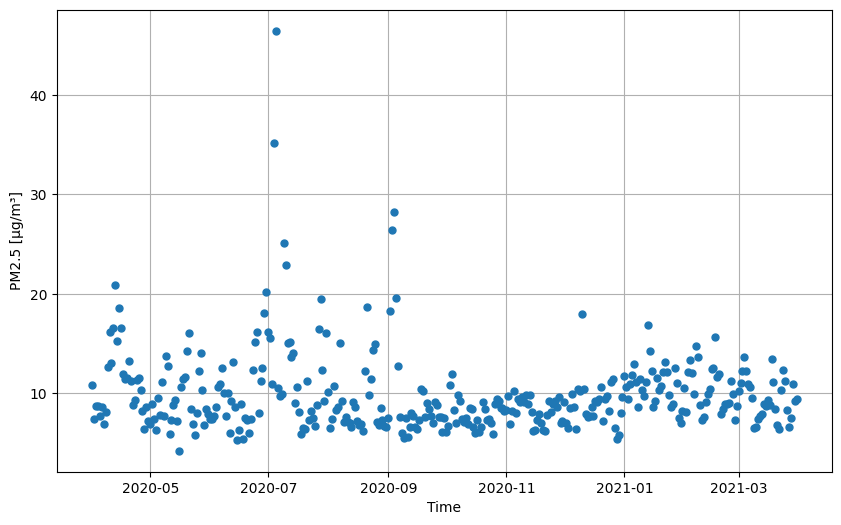

8. Scatterplot (optional)

Some data cannot be plotted accurately as a line plot. Another type of plot that is popular is the marker plot, more commonly known as a scatter plot. A simple scatter plot can be created by setting the linestyle to None, and specifying a marker type, size, color, etc., like this:

fig, ax = plt.subplots(figsize=(10, 6))

# Specify no line with circle markers
ax.plot(post_dates, post_values[:,0], #x,y
        linestyle='None', #no line
        marker='o', #marker style
        markersize=5) #marker size

ax.set_xlabel('Time')
ax.set_ylabel(f'{parameters[0]} [{units[0]}]')
ax.grid(True)

fig, ax = plt.subplots(figsize=(10, 6))

# Specify no line with circle markers
ax.scatter(post_dates, post_values[:,0], #x,y
           marker='o', #marker style
           s=50) #marker size

ax.set_xlabel('Time')
ax.set_ylabel(f'{parameters[0]} [{units[0]}]')
ax.grid(True)

Info

You can also use the scatter method, which is slower, but will give you more control, such as being able to color the points individually based upon a third variable.

Let us make different colors for dots such that values below healty limit is back and above healthy limit is read.

Here is how to assign colors to dots based on air quality:

• Start with the provided code snippet

• Define colors for markers based on air quality values

• Include the c keyword argument in the scatter function call

fig, ax = plt.subplots(figsize=(10, 6))

# Creating an array of strings using np.full() with black color
marker_colors = np.full(post_dates.shape[0], "black")

# Change black to red for values >= healthy limit
Check = post_values[:,0] >= limits[0]
marker_colors[Check] = 'red'

# Specify no line with circle markers
ax.scatter(post_dates, post_values[:,0], #x,y
           c=marker_colors,   # the color value of each marker
           marker='o', #marker style
           s=50) #marker size

ax.set_xlabel('Time')
ax.set_ylabel(f'{parameters[0]} [{units[0]}]')
ax.grid(True)

9. Displaying images (optional)

imshow displays the values in an array as colored pixels, similar to a heat map.

Here, we declare some fake data in a bivariate normal distribution, to illustrate the imshow method:

# Create an array of values from -3.0 to 3.0 with a step size of 0.025 for both x and y
x = y = np.arange(-3.0, 3.0, 0.025)

# Create a meshgrid using the x and y values
X, Y = np.meshgrid(x, y)

# Calculate Z1 and Z2 based on exponential functions with X and Y
Z1 = np.exp(-(X**2) - Y**2)
Z2 = np.exp(-((X - 1) ** 2) - (Y - 1) ** 2)

# Calculate Z as the difference between Z1 and Z2 multiplied by 2
Z = (Z1 - Z2) * 2

# Print the shapes of arrays X, Y, and Z
print(f"X: {X.shape}")
print(f"Y: {Y.shape}")
print(f"Z: {Z.shape}")

X: (240, 240)
Y: (240, 240)
Z: (240, 240)

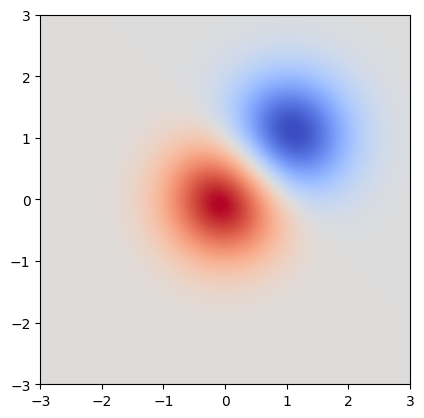

We can now pass this fake data to imshow to create a heat map of the distribution:

# Create a new figure and its subplot
fig, ax = plt.subplots()

# Display the 2D array Z as an image on the subplot ax
im = ax.imshow(
    Z,                   # The 2D array of data to be plotted as an image
    interpolation='bilinear',  # Specifies the interpolation method for displaying the image
    cmap='coolwarm',           # Sets the colormap for the image plot to 'coolwarm'
    origin='lower',            # Sets the origin of the image data to be at the lower left corner
    extent=[-3, 3, -3, 3]     # Sets the extent of the image data along the x and y axes
)

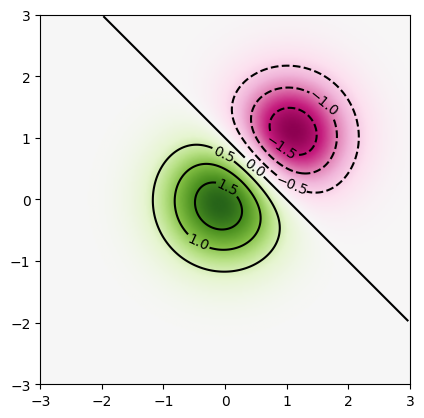

10. Contour and filled contour plots (optional)

• contour creates contours around data.

• contourf creates filled contours around data.

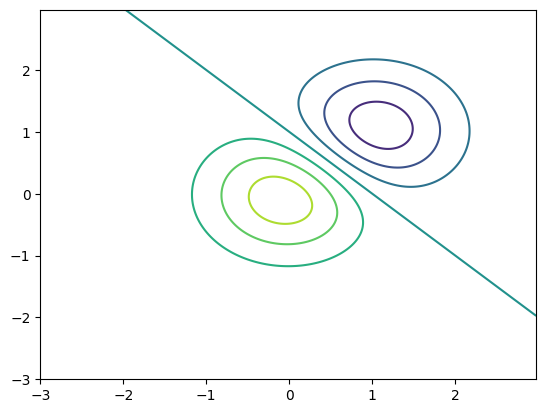

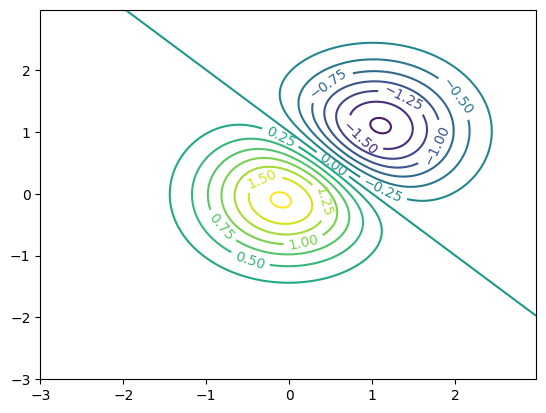

Let’s start with the contour method, which, as just mentioned, creates contours around data:

# Create a new figure and its subplot
fig, ax = plt.subplots()

# Create contour lines on the subplot ax using the meshgrid X, Y, and data Z
ax.contour(X, Y, Z);

After creating contours, we can label the lines using the clabel method, like this:

# Create a new figure and its subplot
fig, ax = plt.subplots()

# Create contour lines on the subplot ax using the meshgrid X, Y, and data Z with specified levels
c = ax.contour(X, Y, Z, levels=np.arange(-2, 2, 0.25))

# Label the contour lines on the plot
ax.clabel(c);

As described above, the contourf (contour fill) method creates filled contours around data, like this:

# Create a new figure and its subplot
fig, ax = plt.subplots()

# Create filled contour plot on the subplot ax using the meshgrid X, Y, and data Z
c = ax.contourf(X, Y, Z);

As a final example, let’s create a heatmap figure with contours using the contour and imshow methods. First, we use imshow to create the heatmap, specifying a colormap using the cmap keyword argument. We then call contour, specifying black contours and an interval of 0.5. Here is the example code, and resulting figure:

# Create a new figure and its subplot
fig, ax = plt.subplots()

# Display an image (imshow) of the data Z on the subplot ax with specified settings
im = ax.imshow(   # Display an image of the data Z on the subplot ax with specified settings
    Z, interpolation='bilinear', # Use bilinear interpolation for smoother image display
    cmap='PiYG',  # Use the PiYG colormap for coloring the image
    origin='lower', # Set the origin of the image to be at the lower left corner
    extent=[-3, 3, -3, 3] # Set the extent of the image in the plot
)

# Add contour lines on the plot
c = ax.contour( # Create contour lines on the plot
    X, # X coordinates for the contour plot
    Y, # Y coordinates for the contour plot
    Z, # Data values for the contour plot
    levels=np.arange(-2, 2, 0.5), # Specify the levels at which contour lines should be drawn
    colors='black' # Set the color of the contour lines to black
)

# Label the contour lines on the plot
ax.clabel(c);

11. Heatmap plot (optional)

A matshow plot is a type of heatmap that displays a matrix of data as a color-encoded image. Each cell in the matrix is represented by a colored square, with colors indicating the values in the matrix. It is useful for visualizing relationships or patterns in the data, such as correlations between variables in a correlation matrix. The color intensity represents the magnitude of the values, making it easy to identify trends or clusters within the data.

# Generate a random correlation matrix
data = np.random.rand(4, 4)
correlation_matrix = np.corrcoef(data, rowvar=False)

fig, ax = plt.subplots(figsize=(8, 6))
im = ax.matshow(correlation_matrix, cmap='coolwarm')

# Set x-axis and y-axis labels
ax.set_xticks(np.arange(len(correlation_matrix)))
ax.set_yticks(np.arange(len(correlation_matrix)))
ax.set_xticklabels(['A', 'B', 'C', 'D'])
ax.set_yticklabels(['A', 'B', 'C', 'D'])

fig.colorbar(im, ax=ax)
ax.set_title('Correlation Matrix')
plt.show()

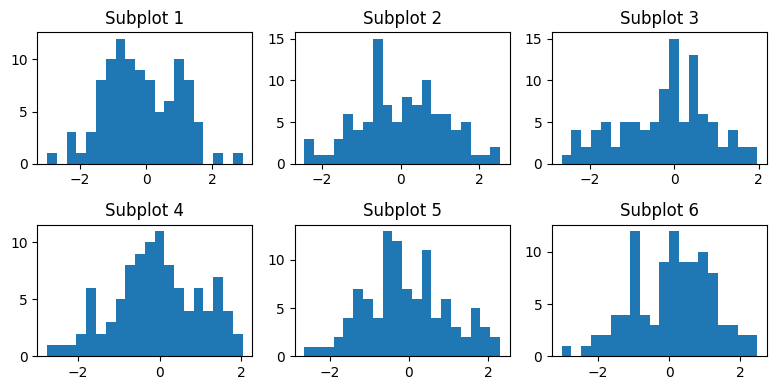

12. Automating subplot index in a loop (optional)

If you want to work with an m x n grid, automating the indexing process can be beneficial, particularly in loop scenarios. You can achieve this automation using index // n and index % n. For instance, in a 2 x 3 subplot grid, you would access the Axes using ax[index // 3, index % 3].

Here is an example:

# Generate sample data for 3x2 subplots
data = [np.random.normal(0, 1, 100) for _ in range(6)]

# Create a figure object and Axes object using subplots() method
n = 2 #Number of rows
m = 3 #Number of colums

fig, ax = plt.subplots(n, m, figsize=(8, 4))

# Plot data on each subplot
for index in range(6):
    ax[index // m, index % m].hist(data[index], bins=20)  # Plot histogram for sample data
    ax[index // m, index % m].set_title(f'Subplot {index + 1}')  # Set subplot title

plt.tight_layout()
plt.show()

In the provided code, the expression ax[index // 3, index % 3] is used to access each subplot within a 2x3 grid of subplots. The // and % operations compute the row and column indices in the grid, making element access and traversal easier during iteration.

• The modulo operation % gives the remainder after division, ensuring the column index remains within the range of 0 to 2, allowing for cyclic behavior in element indexing.

• Integer division // divides two numbers and provides the integer part of the quotient, neglecting any remainder, which helps in keeping the row index within the range of 0 to 2.

Combining these two expressions (index // 3 for rows and index % 3 for columns) allows us to access each subplot in the 2x3 grid systematically. This correctly maps the loop variable index to the corresponding row and column indices in the 2x3 grid, enabling dynamic subplot within the loop iteration.

for index in range(10):
    print(index // 3, index % 3)

0 0
0 1
0 2
1 0
1 1
1 2
2 0
2 1
2 2
3 0

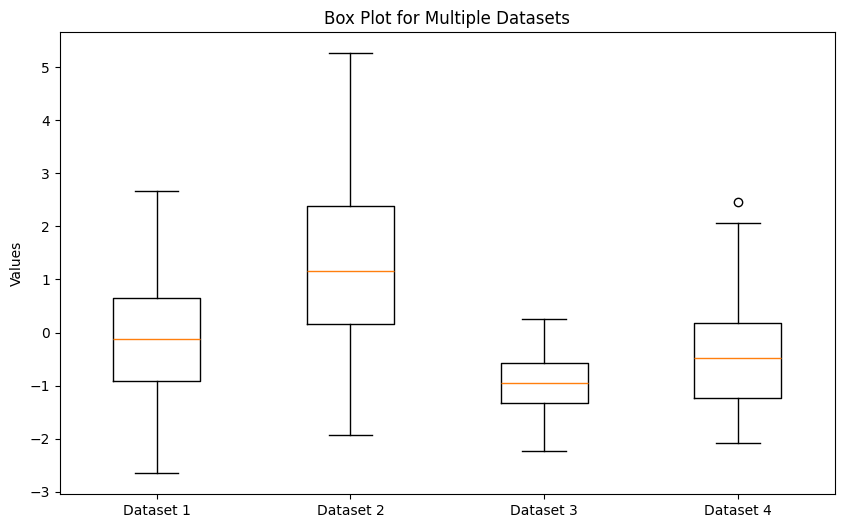

13. Boxplot for multiple datasets with for-loop (optional)

Here we create box plots for multiple datasets iteratively using a for loop in Matplotlib. This example show how to add data one by one and then display the box plots together.

Here is how you can achieve this:

# Generating sample data for demonstration purposes
data1 = np.random.normal(0, 1, 100)
data2 = np.random.normal(1, 1.5, 100)
data3 = np.random.normal(-1, 0.5, 100)
data4 = np.random.normal(-0.5, 1, 100)

# Creating the data list with the sample datasets
data_list = [data1, data2, data3, data4]

# Create dataset and label for plotting
boxplot_data = []
labels = []
for index, data in enumerate(data_list, start=1):
    boxplot_data.append(data)
    labels.append(f'Dataset {index}')

#Plot data
fig, ax = plt.subplots(figsize=(10, 6))

ax.boxplot(boxplot_data)
ax.set_title('Box Plot for Multiple Datasets')
ax.set_ylabel('Values')
ax.set_xticks(range(1, len(boxplot_data) + 1))
ax.set_xticklabels(labels)
plt.show()

In the above code:

• data_list is a list containing the datasets you want to plot.

• We iterate over each dataset in the data_list using a for loop, adding the data to boxplot_data and creating labels for each dataset.

• Finally, we use plt.boxplot() to create the box plots for each dataset in boxplot_data, with corresponding labels.

By running this code, you can create box plots for multiple datasets one by one using a for loop.

14. “Axes” interface and “pyplot” interface (optional)

Matplotlib has two main interfaces. The explicit “Axes” interface uses methods on a Figure or Axes object to create visual elements step by step. Example: Creating a plot with ax.plot(). The implicit “pyplot” interface: Automatically manages Figures and Axes, adding elements to the last created plot. Example: Creating a plot with plt.plot()

Here is the above example, with the explicit “Axes” interface ax.plot():

fig, ax = plt.subplots(figsize=(10, 6))

ax.boxplot(boxplot_data)
ax.set_title('Box Plot for Multiple Datasets')
ax.set_ylabel('Values')
ax.set_xticks(range(1, len(boxplot_data) + 1))
ax.set_xticklabels(labels)
plt.show()

The same example with the implicit “pyplot” interfaceplt.plot():

plt.subplots(figsize=(10, 6))

plt.boxplot(boxplot_data)
plt.title('Box Plot for Multiple Datasets')
plt.ylabel('Values')
plt.xticks(range(1, len(boxplot_data) + 1), labels)
plt.show()

Note how the methods names for these two interfaces are different (e.g., ax.set_ylabel vs. plt.ylabel).

---

15. Summary

• Matplotlib can be used to visualize datasets you are working with.

• You can customize various features such as labels and styles.

• There are a wide variety of plotting options available, including (but not limited to):

  • Line plots (plot)

  • Scatter plots (scatter)

  • Heatmaps (imshow)

  • Contour line and contour fill plots (contour, contourf)

• You can learn next about more plotting functionality such as histograms, pie charts, and animation

Resources and References

The goal of this tutorial is to provide an overview of the use of the Matplotlib library. It covers creating simple line plots, but it is by no means comprehensive. For more information, try looking at the following documentation:

• Matplotlib cheatsheets and handouts

• Matplotlib documentation

• Matplotlib examples gallery

• GeoCAT examples gallery
